Open to research & internship opportunities

Hashem Altujar

Electrical Engineering Student & Embedded Systems / Robotics Researcher

I build real-time embedded control systems and robots that operate where software meets the physical world — from bare-metal firmware driving hydraulic actuators to AI-assisted perception for autonomous flight.

Hashem Altujar

First Honors

KFUPM Dean's List

About

Where hardware meets intelligence

I'm a first-honors Electrical Engineering student at King Fahd University of Petroleum and Minerals (KFUPM), while working across embedded firmware, control systems, and applied robotics research.

I've explored and developed projects in the fields of robotics, autonomous drone systems, closed-loop systems, and machine learning. My specialty is writing bare-metal C for real-time control loops, reverse-engineering undocumented communication protocols, and closing the loop between sensors, actuators, and decision-making software. I'm currently a Research Intern at HKUST developing control firmware for a water-hydraulic soft robotic arm, alongside ongoing undergraduate research at KFUPM spanning assistive robotics.

Additionally, I am currently learning more on PCB design and electroencephalogram (EEG) for assistive robotic control through brain waves.

Currently

B.S., Electrical Engineering

King Fahd University of Petroleum and Minerals

  • GPA3.94 / 4.00
  • FocusEmbedded & Control Systems
  • Based inDhahran, Saudi Arabia
Experience

Research, competitions & leadership

A timeline of research positions, technical leadership roles, and hands-on engineering work.

Research Intern — Soft Robotics & Embedded Control

06/2026 – Present
Hong Kong University of Science and Technology (HKUST) — Summer UG Research ProgramHong Kong
  • Developed bare-metal C firmware (STM32H7) for a water-hydraulic soft robotic arm driving 2 PWM pumps, 5 CAN servo drives, and a Modbus RS485 flow sensor in a real-time loop.
  • Reverse-engineered an undocumented CAN 2.0B protocol with a custom firmware bus sniffer, fixing frame-encoding faults that had left 4 of 5 drives inoperable.
  • Designed an asymmetric-margin tendon synchronization algorithm that eliminated the system's primary mechanical failure mode.
  • Implemented sensorless closed-loop positioning by integrating flow-sensor data against a calibrated volume-to-displacement regression — validated to 3.5 mm mean absolute error (RMSE 4.9 mm, R² = 0.99) across a 315 mm stroke over 10 trials.
  • Built a layered safety system (stall detection, travel limits, pump interlock) halting actuation within 600 ms of a jam.

Design & Assembly Lead

10/2025 – 02/2026
KFUPM Robotics Team — VEX U PushbackDhahran, Saudi Arabia
  • Qualified the team for the VEX U National stage; directed a 14-member sub-team across CAD, fabrication, and integration.
  • Designed and assembled a 22 in. competition robot (AutoCAD) with intake, outtake, and scoring mechanisms driven by motors, flex wheels, and pneumatics.

Undergraduate Researcher — Robotics & Assistive Technology

09/2025 – 05/2026
KFUPM Research and InnovationDhahran, Saudi Arabia
  • Engineering a 16-DOF robotic hand that translates spoken input into ASL fingerspelling across 24 letters of the manual alphabet (excluding the two motion-dependent letters).
  • Built the speech-to-gloss-to-motion pipeline on Jetson Orin Nano with ROS actuator control; designed the full mechanical CAD assembly.

Undergraduate Researcher — Acoustic UAV Detection

05/2025 – 10/2025
KFUPM Telecommunications Research LabDhahran, Saudi Arabia
  • Developed a hybrid acoustic drone-detection pipeline on NVIDIA Jetson Nano with real-time inference at 15–20 FPS.
  • Trained a ResNet acoustic classifier (TensorFlow) to 92% precision; implemented microphone-array Direction-of-Arrival localization with full 360° coverage.
  • First-authored a systematic review of 20+ studies (2018–2024) on acoustic UAV detection.
Projects

Selected work

Robotics and embedded systems projects spanning research, competition, and applied engineering. Preview images are placeholders — swap them for real screenshots any time.

Preview placeholder

Water-Hydraulic Soft Robotic Arm

2026 — Present

Real-time bare-metal control firmware for a water-hydraulic soft robotic arm, including a reverse-engineered CAN bus protocol, a custom tendon-synchronization algorithm, and sensorless closed-loop positioning.

STM32H7C (bare-metal)CAN 2.0BModbus RS485PWMClosed-loop control
  • 3.5 mm mean absolute error across a 315 mm stroke (RMSE 4.9 mm, R² = 0.99)
  • Layered safety system halts actuation within 600 ms of a jam

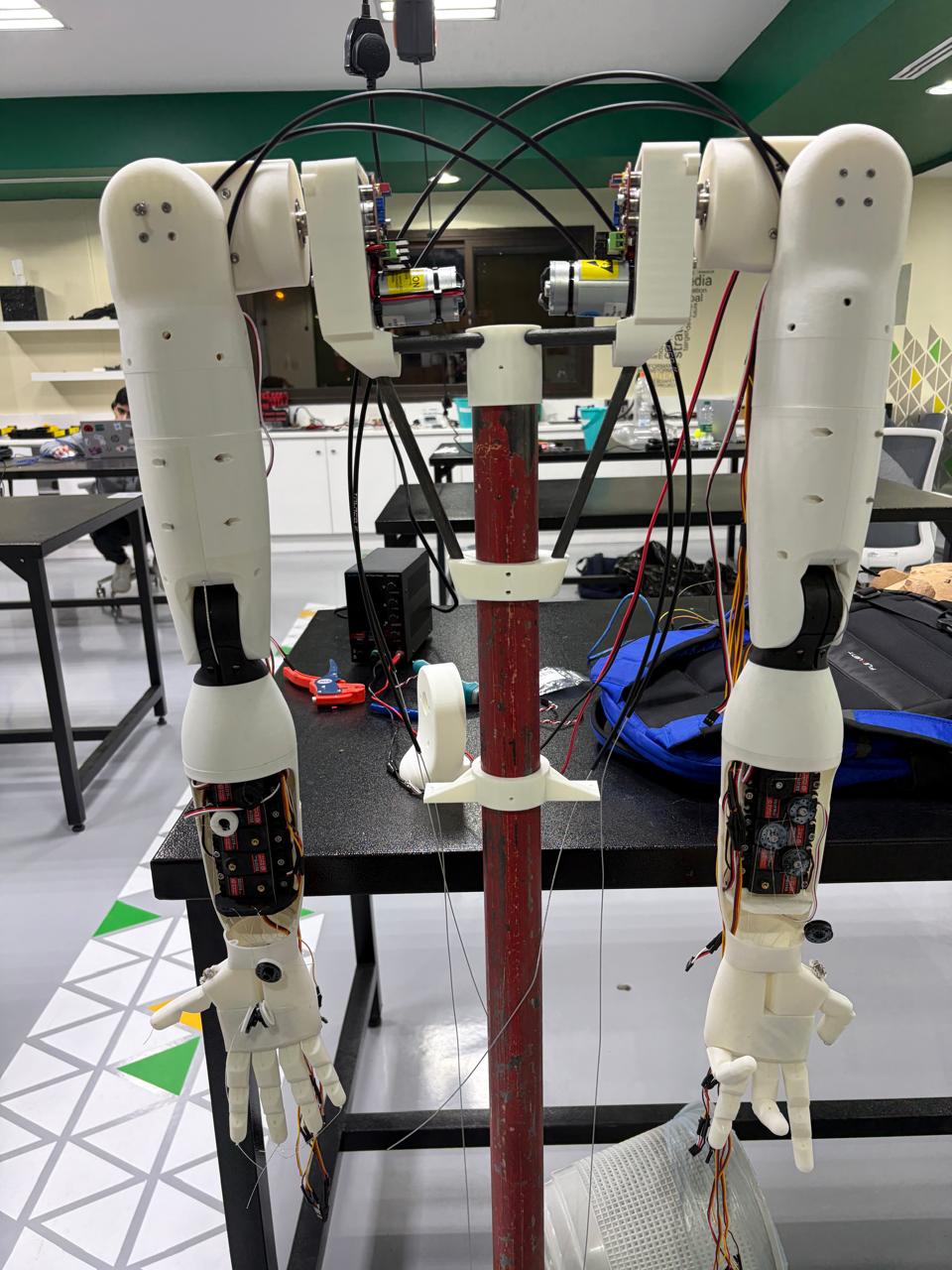

ASL Fingerspelling Robotic Hand

ASL Fingerspelling Robotic Hand

2025 — 2026

A dual-arm humanoid robotic hand system that mechanically translates spoken letters into American Sign Language fingerspelling in real time, pairing a Jetson Orin Nano speech-to-text pipeline with a 16-servo-per-arm, tendon-driven hand design validated in MuJoCo simulation before hardware assembly.

Jetson Orin NanoROSMuJoCoPCA9685Servo-driven tendonsCAD
  • Covers 24 letters of the manual alphabet (excluding the two motion-dependent letters)
  • Two iterative hardware designs — from an outsourced initial prototype to a custom tendon-driven dual-arm rig
  • Built for under 3,130 SAR using a mix of 20 kg, 150 kg, and 380 kg digital servos
  • Full mechanical actuation validated across both arms; the speech-to-sign software pipeline is ongoing

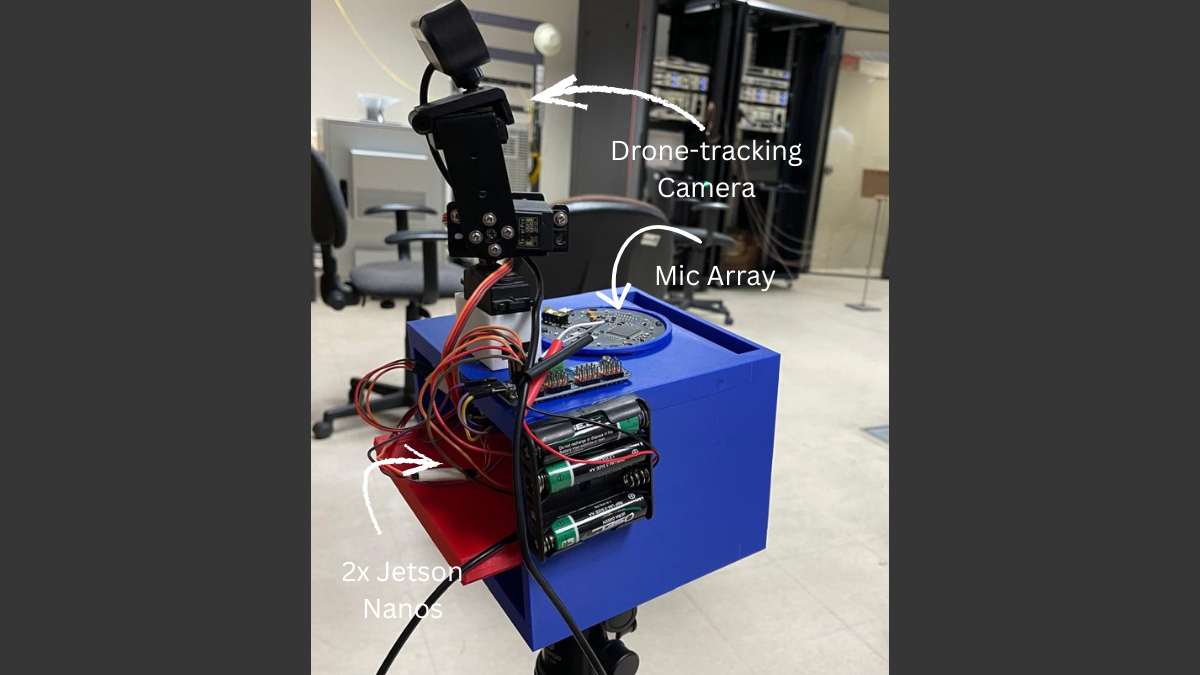

Acoustic UAV Detection System

Acoustic UAV Detection System

2025

A hybrid drone-detection rig fusing a microphone-array acoustic classifier with a YOLOv5/TensorRT visual tracker across two NVIDIA Jetson Nanos — the acoustic side estimates bearing via direction-of-arrival, while a PID-controlled, PCA9685-driven pan-tilt camera locks onto and follows detected drones in real time.

NVIDIA Jetson NanoTensorFlowResNet / CNNYOLOv5TensorRTPCA9685 Pan-Tilt ControlSignal Processing
  • 92% classification precision at 15–20 FPS
  • Full 360° direction-of-arrival coverage from the microphone array
  • TensorRT-optimized YOLOv5 visual detection at 18–25 FPS (640×640, FP16) driving closed-loop PID camera tracking
  • Basis for a first-authored review of 20+ studies (2018–2024), published at IEEE SCC 2025

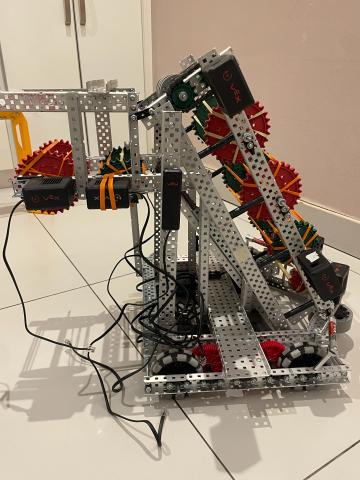

Theeb — VEX U Competition Robot

Theeb — VEX U Competition Robot

2025 — 2026

Theeb, a 22-inch VEX U Pushback competition robot built while directing a 14-member sub-team across CAD, fabrication, and integration. Theeb went through four major hardware revisions — from an X-drive base with an S-shaped scoring channel to a lighter, color-sorting H-drive with linear scoring — backed by a PROS/LemLib software stack for sensor-fused autonomous navigation.

AutoCAD3D PrintingPneumaticsPROSLemLibVEX V5
  • Qualified the team for the VEX U National stage
  • Iterated through 4 hardware revisions (X-drive → H-drive, S-Channel → linear scoring) driven by testing and match feedback
  • Sensor-fused autonomous position tracking (GPS, IMU, optical flow) via LemLib odometry
  • AI Vision-based object distance estimation plus a color-sorting intake for autonomous ball filtering

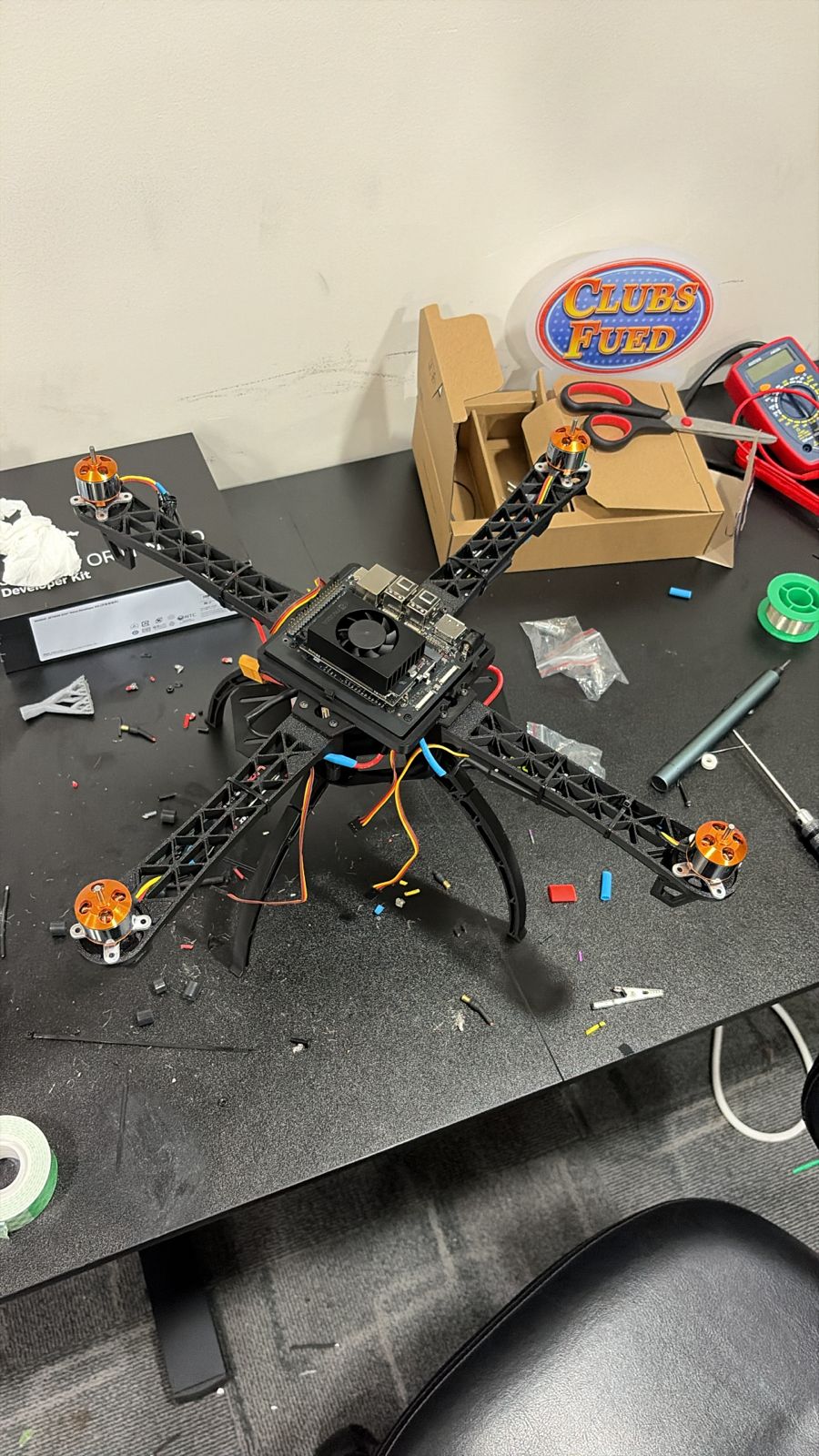

Autonomous Aerial Detection Drone

Autonomous Aerial Detection Drone

KFUPM Competition

An autonomous drone performing AI-based human detection with 3-axis camera tracking and laser targeting, built for the Autonomous Aerial Systems Competition. Led embedded systems and electronics integration.

Embedded SystemsAI Human DetectionCamera Tracking
  • 3rd place of 10 teams
Publications

Research & writing

A Review of Acoustic Techniques for Drone Detection

IEEE Smart Cities Conference (SCC), 2025

H. Altujar et al., "A Review of Acoustic Techniques for Drone Detection," IEEE Smart Cities Conference (SCC), 2025.

View publication
Skills

Technical toolkit

Languages

C (embedded, bare-metal)PythonMATLAB

Embedded & Protocols

STM32 / ARM Cortex-M7ArduinoNVIDIA Jetson (Nano, Orin Nano)CAN 2.0B / FDCANModbus RTURS485UARTI2CSPIPWM

Control & Robotics

PI/PID controlClosed-loop feedbackSensor fusionEncoder feedbackReal-time state machinesSimulinkROS

ML, Tools & Design

TensorFlowNumPyscikit-learnCNN / ResNetGitLinuxSTM32CubeIDESegger OzoneAutoCADFusion 3603D printing
GitHub

Open-source & code

Live from my GitHub profile — repositories, activity, and stats update automatically.

@HaShinobi

Robotics, embedded systems, and control software.

View Profile

Loading live GitHub stats…

Education

Academics & recognition

Education

B.S., Electrical Engineering

King Fahd University of Petroleum and Minerals

Dhahran, Saudi Arabia

Expected 05/2028
GPA 3.94 / 4.00

Awards & Honors

  • 1st Place, KFUPM Venture Tank

    SAR 15,000 seed funding for Elecure

  • Finalist, SCI UK Bright SCIdea Challenge 2025

    Youngest international team and first KFUPM freshman to qualify

  • Bechtel Corporation Scholarship

    Awarded for academic and extracurricular excellence

  • 3rd Place (of 10 teams), Autonomous Aerial Systems Competition, KFUPM

    Led embedded and electronics integration for an autonomous drone performing AI human detection and 3-axis camera tracking with laser targeting

  • First Honors & Dean's List, KFUPM

    Awarded for academic distinction

Contact

Let's work together

Reach out about research collaborations, internships, or anything embedded/robotics related.

Submitting opens your email client with this message pre-filled to hashem.altujar@gmail.com.
